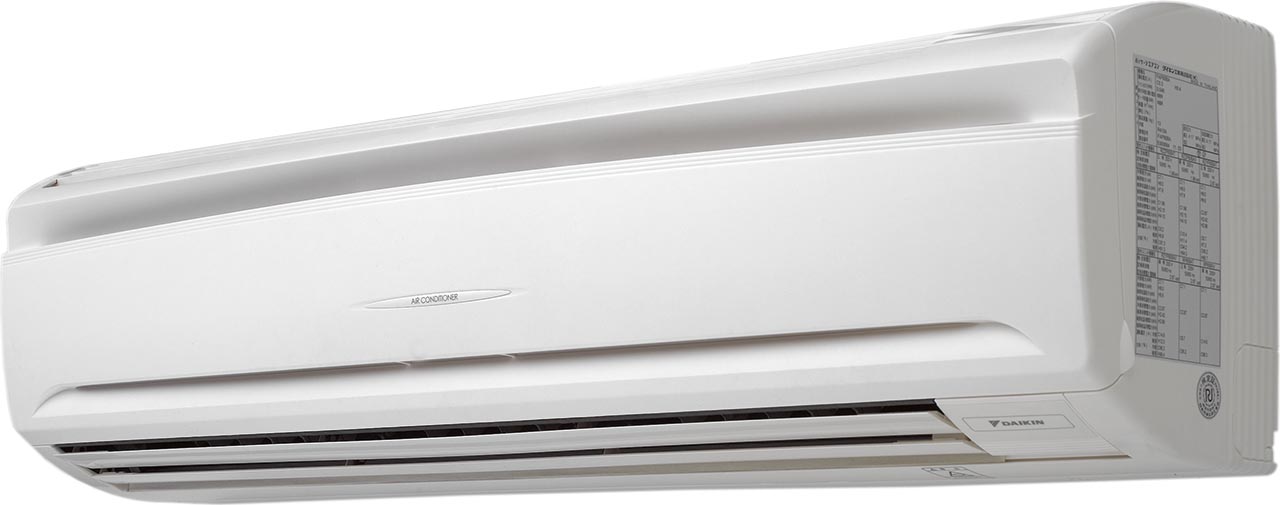

Wall mounted unit

Seasonal Classic - FAQ-C / RZQSG-LV1/Y1

Product Features

Flat, stylish front panel blends easily within any interior décor and is easier to clean
Seasonal classic series already comply with EU's 2014 Eco-Design requirements
Seasonal efficiency, optimized for all seasons.
Can easily be installed in both new and refurbishment projects
Top efficiency: - Energy labels up to A++ (cooling) /A+ (heating) for RZQG71/100L9V1 + FCQG71/100F - compressor that offers substantial efficiency improvements - control logic that optimises efficiency at the most frequently encountered operating conditio
Units optimized for seasonal efficiency give an indication on how efficient an air conditioner operates over an entire heating or cooling season.
Reduced energy consumption thanks to specially developed DC fan motor
Replace existing systems with R-32 technology without needing to replace the piping
The air is comfortably spread up- and downwards thanks to 5 different discharge angles that can be programmed via the remote control
Guarantees operation in heating mode down to -15°C
Maintenance operations can be performed easily from the front of the unit
Flexible to install as the largest casing only weighs 17kg and piping connection can be done at the bottom, left or right of the unit
Maximum piping length up to 50m, minimum piping length is 5m.
Daikin outdoor units are neat, sturdy and can easily be mounted on a roof or terrace or simply placed against an outside wall
Optimum comfort guaranteed with automatic air-flow volume control as this minimises the difference between room and required temperature. No action required from occupants to meet the desired temperature.
No optional adapter needed for DIII-connection, link your unit into the wider building management system.

Benefits

Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Infrastructure cooling

Remove in a reliable, efficient and flexible way the heat constantly generated by the IT and server equipment to ensure maximum uptime while offering the best return on investment.
Vertical auto swing

Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.
Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover

Automatically selects heating or cooling mode to achieve the set temperature.
Fan speed steps (3 steps)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter

Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer

Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control

Starts, stops and regulates the air conditioner from a distance.
Wired remote control

Starts, stops and regulates the air conditioner.
Centralised control

Starts, stops and regulates several air conditioners from one central point.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (optional)

Facilitates condensation draining from the indoor unit.
Twin/triple/double twin application

2,3 or 4 indoor units can be connected to only a single outdoor unit even if they have different capacities. All indoor units operate within the same heating or cooling mode from one remote control.
