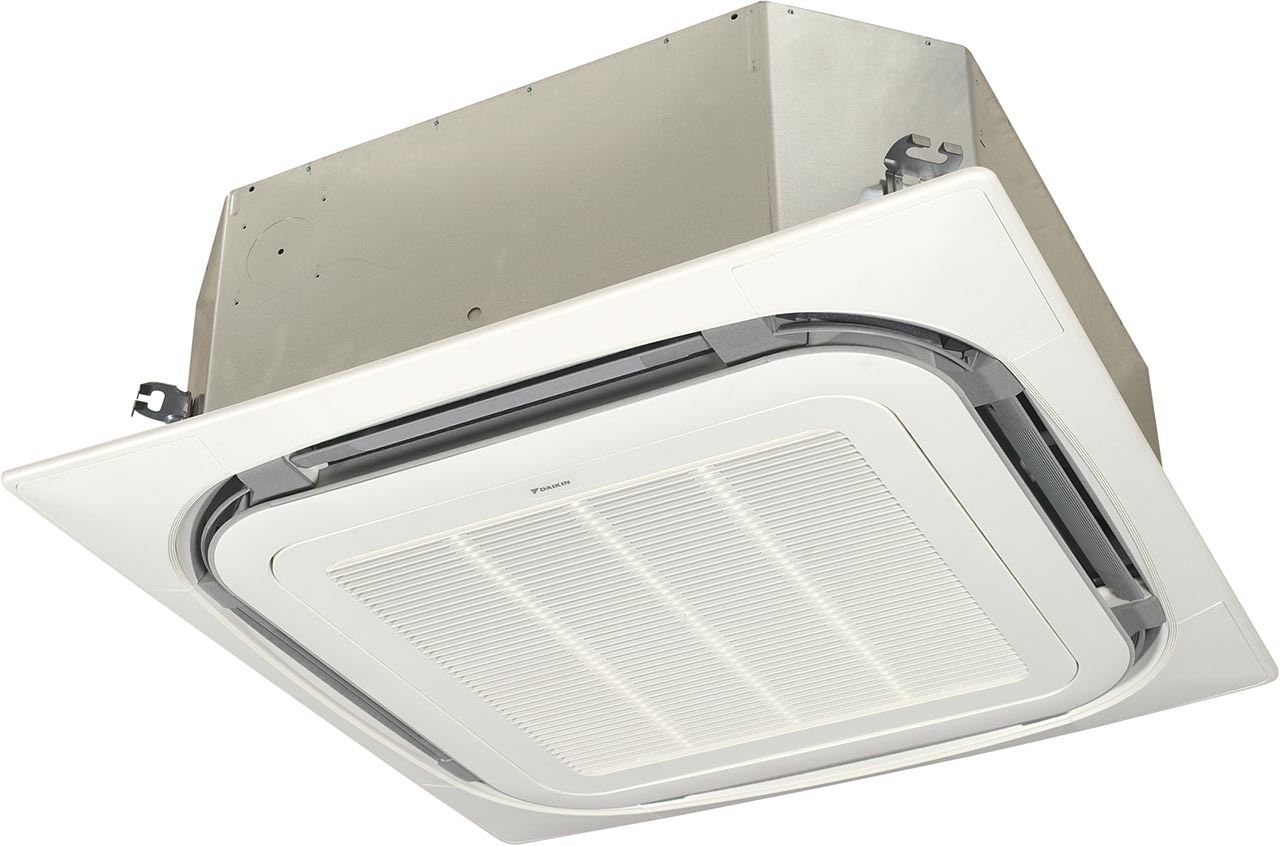

Seasonal Inverter - FCQH-D8 / RZQ-D3/D9V1

Product Features

360° air discharge ensures uniform air flow and temperature distribution
The use of inverter type outdoor units results in an air conditioning system with a high energy efficiency and very low sound level
Daikin outdoor units are neat, sturdy and can easily be mounted on a roof or terrace or simply placed against an outside wall
Lower maintenance costs thanks to auto cleaning function.
Outdoor units are fitted with either a swing or scroll compressor, renowned for low noise and high energy efficiency
A special acryl precoated fin for anti-corrosion treatment on the heat exchanger ensures greater resistance against severe weather conditions
Outdoor units for pair, twin, triple, double twin application
Vertical auto swing moves the discharge flaps up and down for efficient air and temperature distribution throughout the room
Quiet operation: down to 28dBA sound pressure level
Energy efficient units: full range A class energy labels
The Sky Air inverter is developed for use in light commercial applications, provides a more comfortable environment and offers great savings in energy consumption to shop, restaurant and office owners
Modern style decoration panel is available in 3 diﬀerent variations: white (RAL9010) with grey louvers, full white (RAL9010) or auto cleaning panel
An inverter driven compressor allows the capacity to be adjusted precisely to match variations in room and outside temperatures
Daikin introduces first auto cleaning cassette to European market.
Daily automatic filter cleaning results in higher efficiency & comfort and lower maintenance costs. Dust can easily be removed with a vacuum cleaner without opening the unit
During start up, the room can be cooled down or heated very quickly; once the temperature in the room has reached its set point, the low power operation starts to save energy.
Easy dust removal with vacuum cleaner without opening the unit.
Since the flaps can move to a 0 degree position, virtually no draught can be experienced
23 different air flow patterns possible
Optional fresh air intake
Drain-up pump with 850mm lift fitted as standard

Benefits

Energy efficiency

Energy efficient units: full range A class energy labels.
Inverter

Inverter compressors continuously adjust compressor speed to actual demand. Fewer power-consuming starts and stops result in decreased energy consumption (up to 30%) and more stable temperatures.
Home leave operation

Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
Fan only

The unit can be used as fan, blowing air without heating or cooling.
Auto-cleaning filter

The filter automatically cleans itself once per day. Simplicity of upkeep means optimum energy efficiency and maximum comfort without the need for expensive or time-consuming maintenance.
Draught prevention

When starting to warm up or when the thermostat is off, the air discharge direction is set horizontally and the fan to low speed, to prevent draught. After warming up, air discharge and fan speed are set as desired.
Auto cooling-heating changeover

Automatically selects heating or cooling mode to achieve the set temperature.
Whisper quiet

Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Night quiet mode

Reduces automatically the operation sound during nighttime of the outdoor unit by 3dB(A) by removing an outdoor unit jumper wire. (Multi outdoor units in cooling mode only).
Ceiling soiling prevention

Prevents air from blowing out too long in horizontal position, to prevent ceiling stains.
Vertical auto swing

Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.
Fan speed steps (2 steps)

Allows to select up to the given number of fan speed.
Dry programme

Allows humidity levels to be reduced without variations in room temperature.
Air filter

Removes airborne dust particles to ensure a steady supply of clean air.
Auto-restart

The unit restarts automatically at the original settings after power failure.
Self diagnosis

Simplifies maintenance by indicating system faults or operating anomalies.
Twin/triple/double twin application

2,3 or 4 indoor units can be connected to only a single outdoor unit even if they have different capacities. All indoor units operate within the same heating or cooling mode from one remote control.
